Building a Landing Gear Unit

Step by step build guide based on Boeing 777

Posted by Phill on May 18, 2025

Building the gear lever holding box

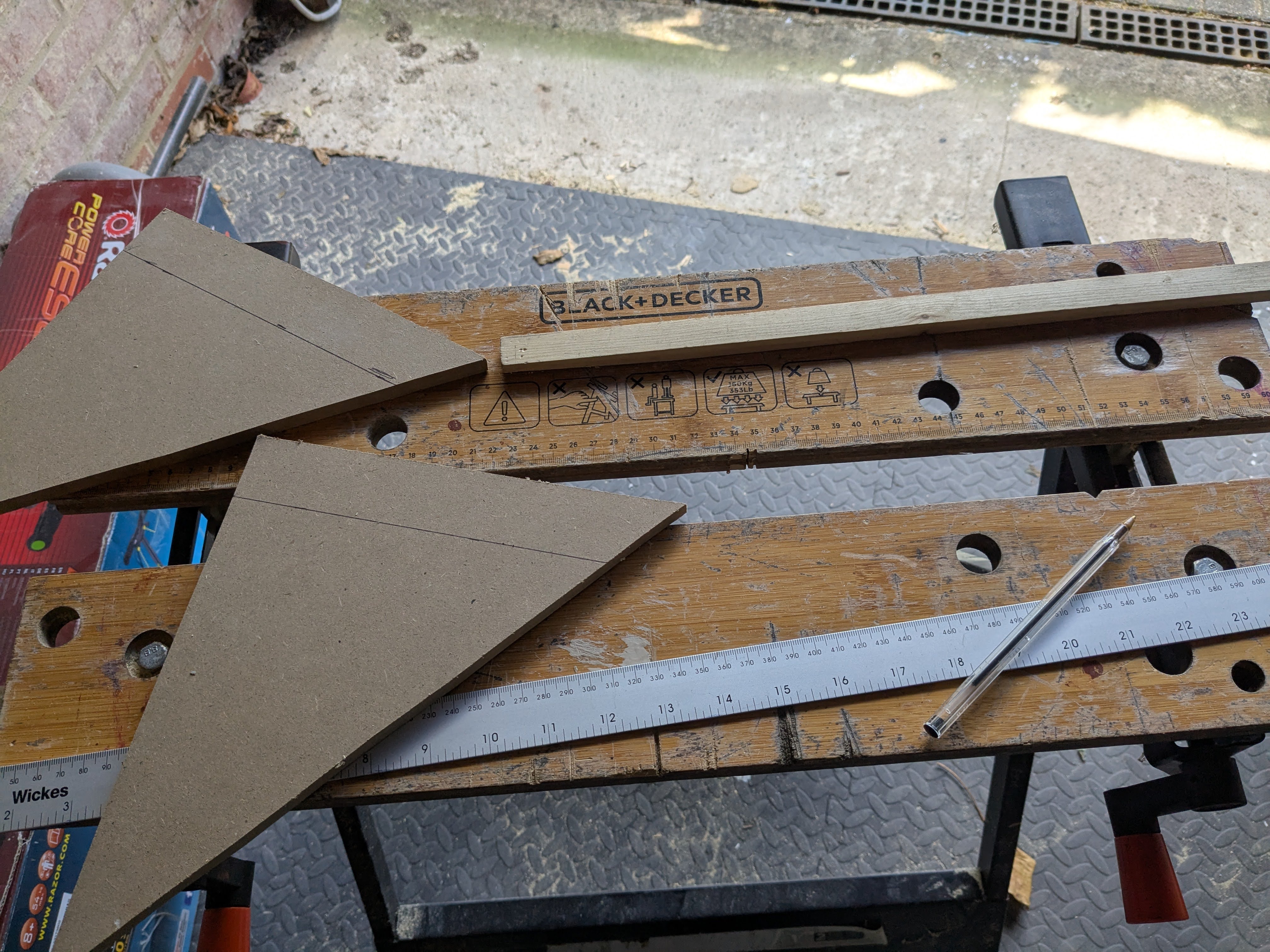

Marking up 2 side panels for the box using some old off cuts.


Cutting out the pieces

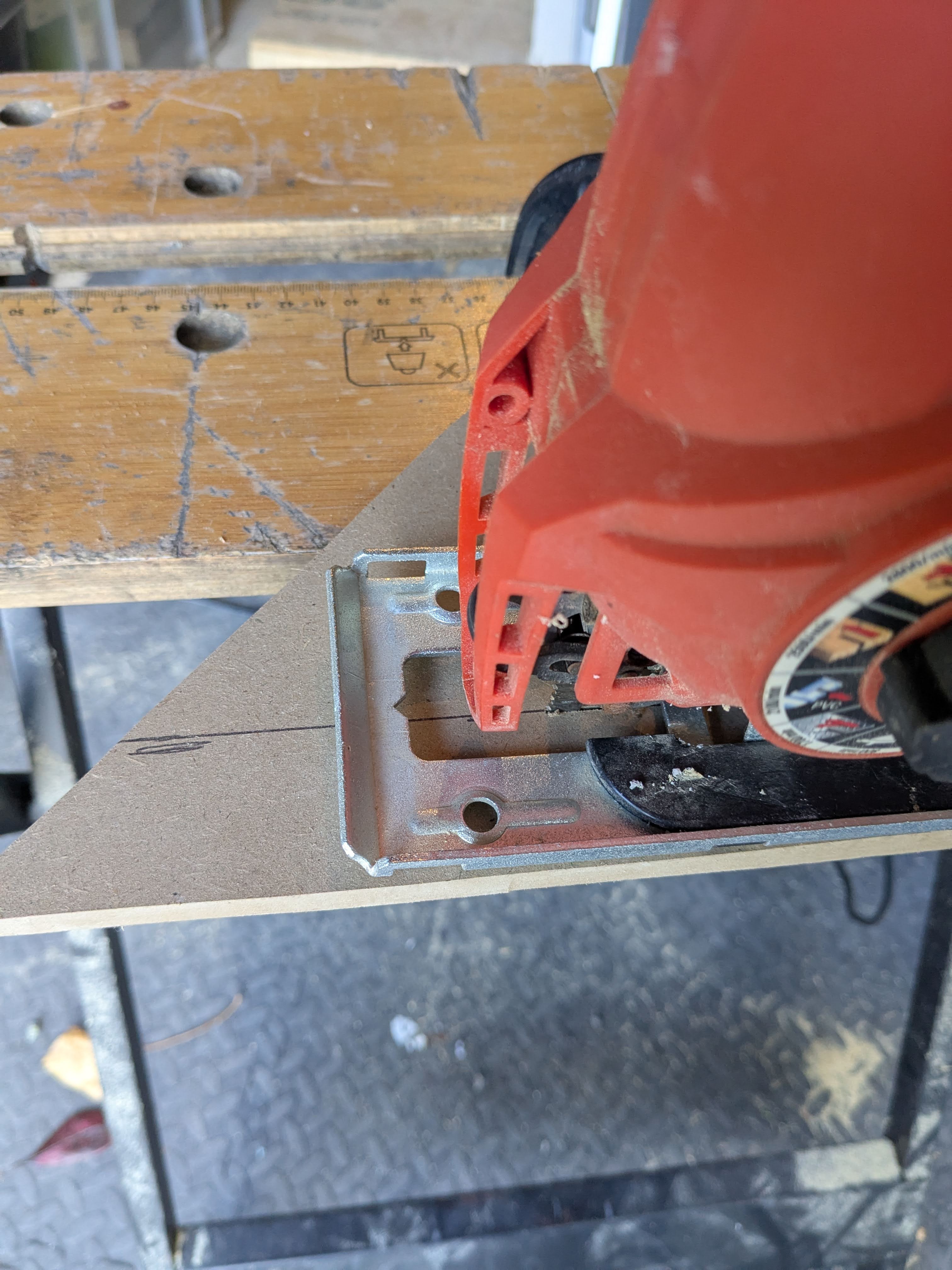

Using a jigsaw

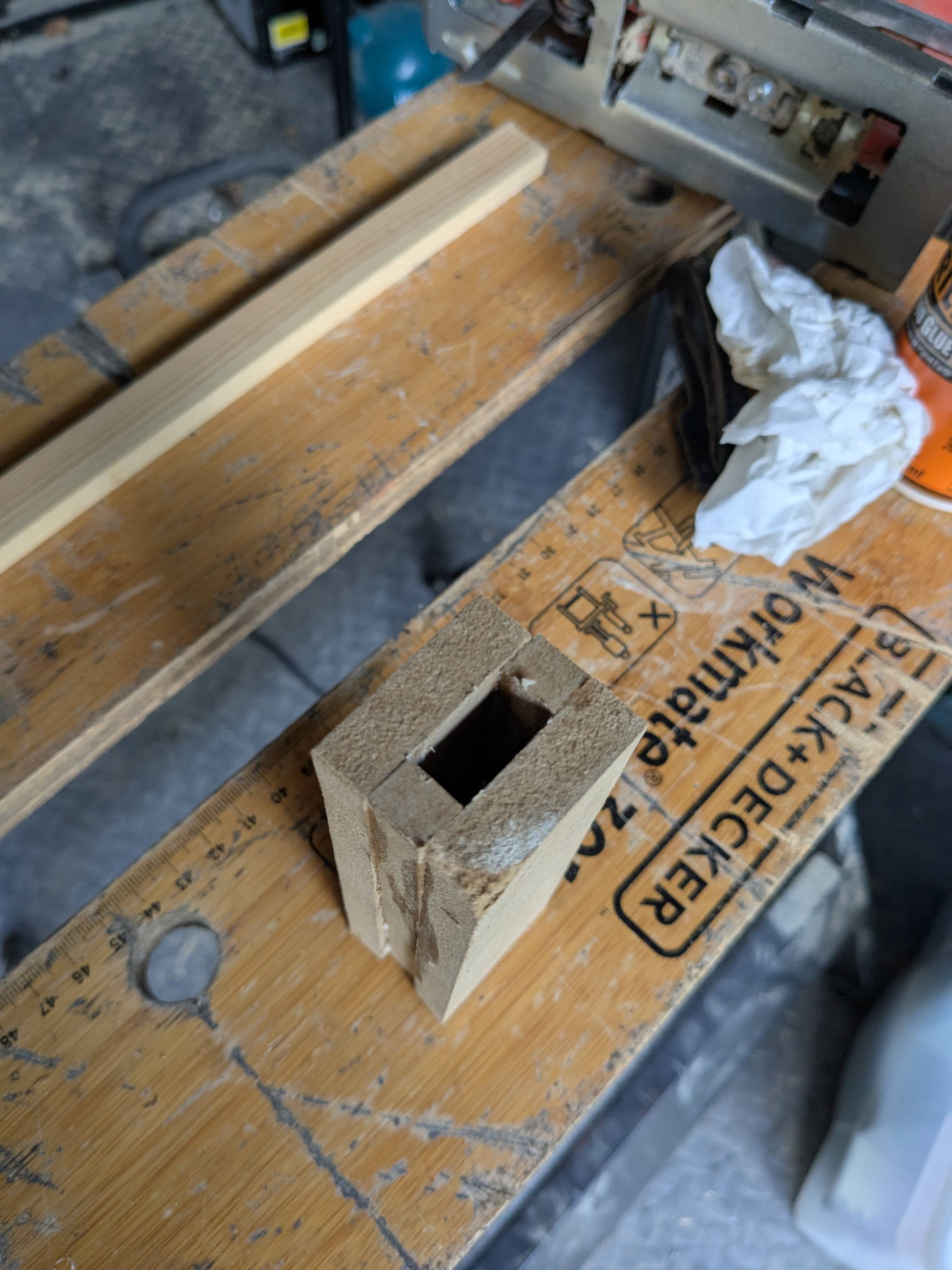

Assembling the box

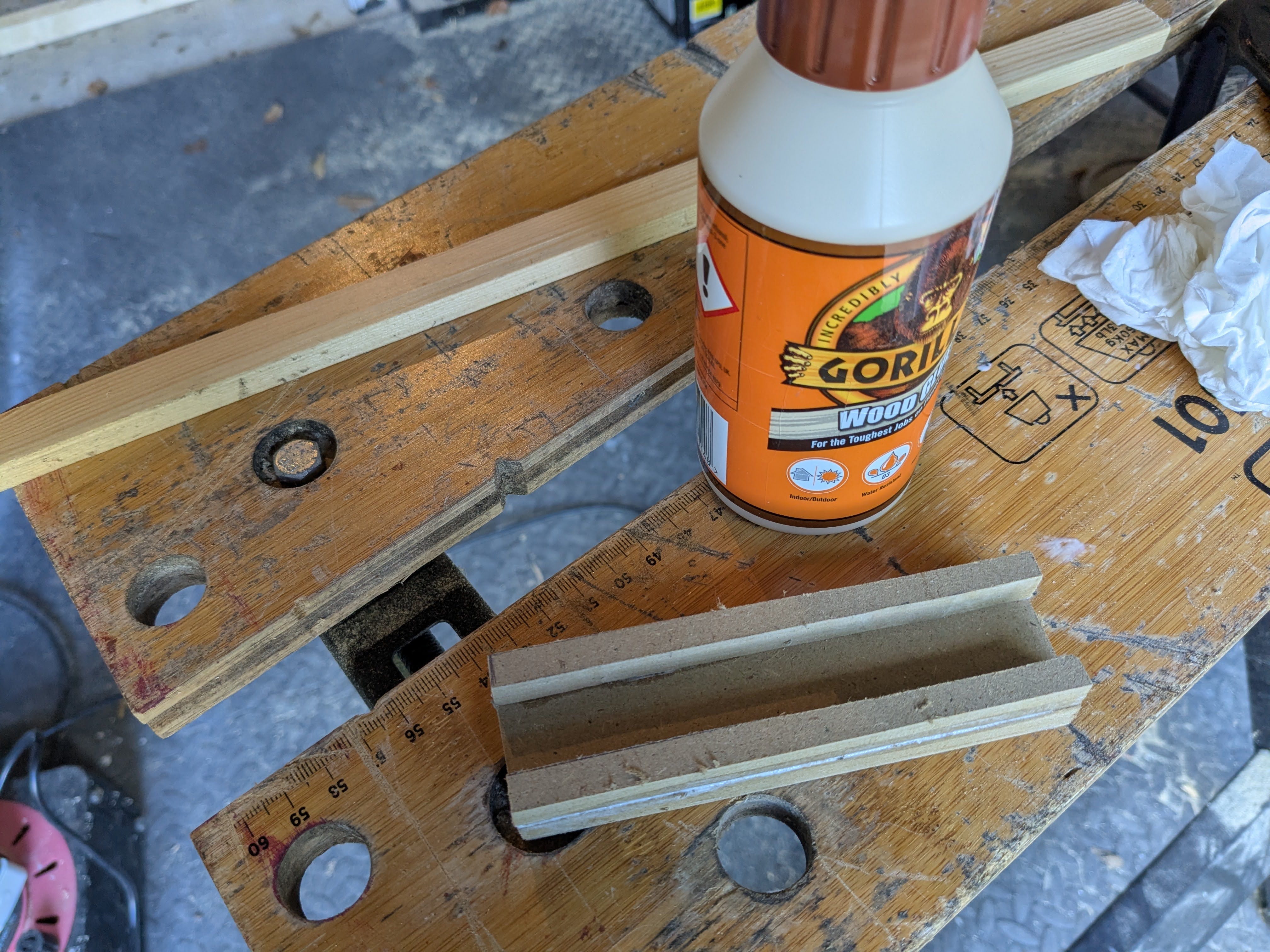

Apply wood glue to bond


Attaching the top

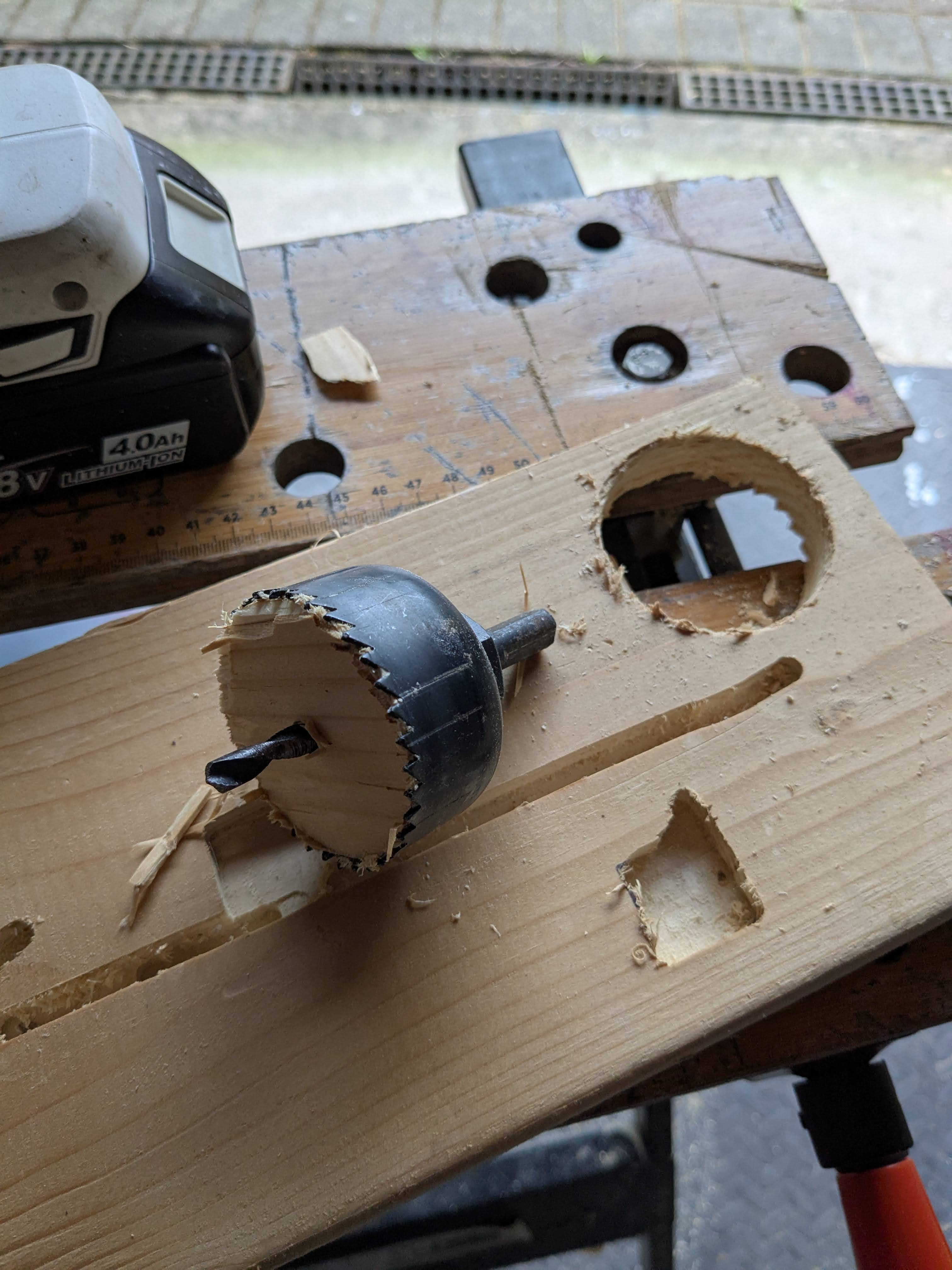

Drilling the handle


Drilling a hole for the lever

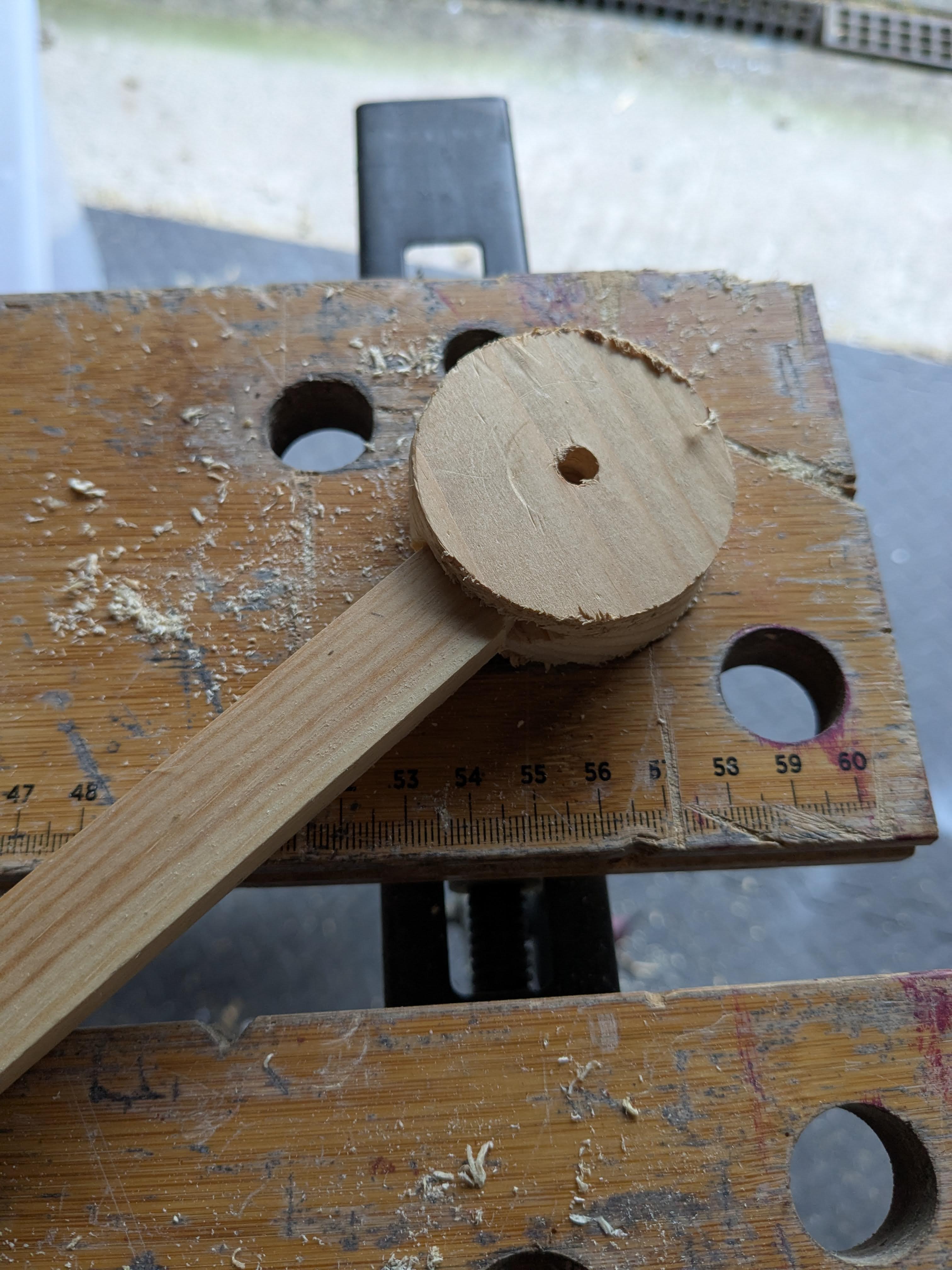

Attaching the lever

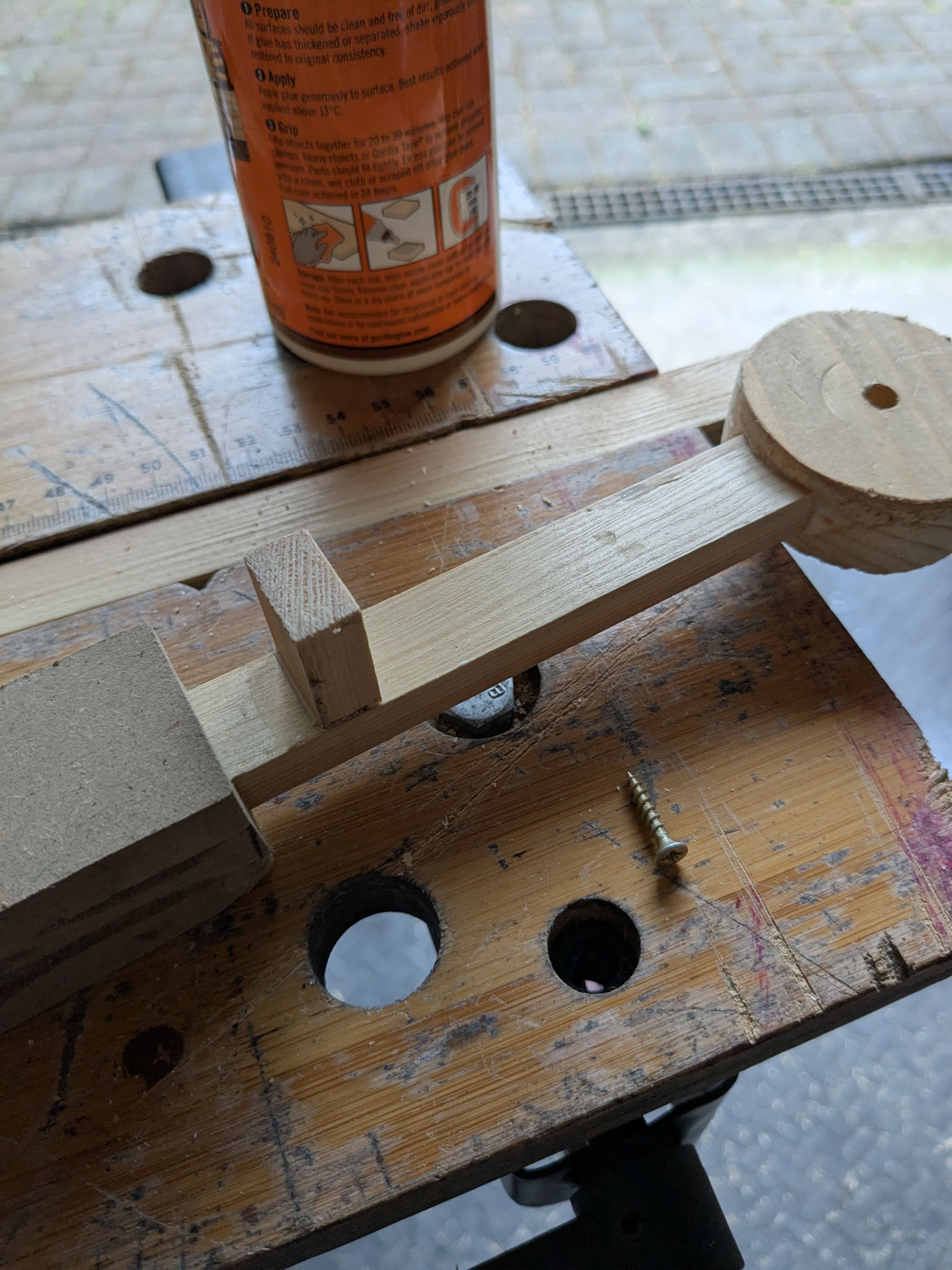

Attaching a small stopper to the lever

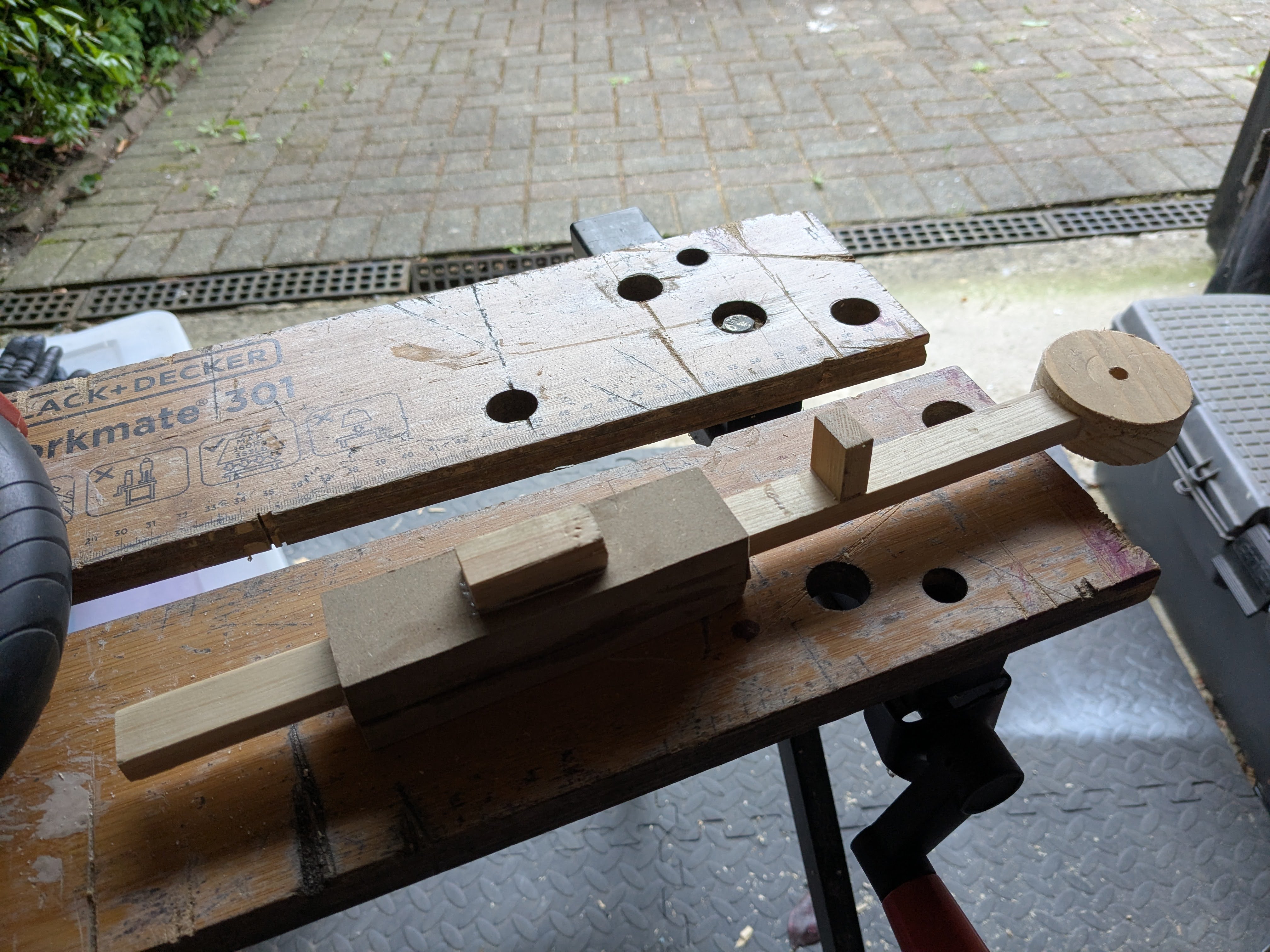

Attaching a small block to support the elastic band

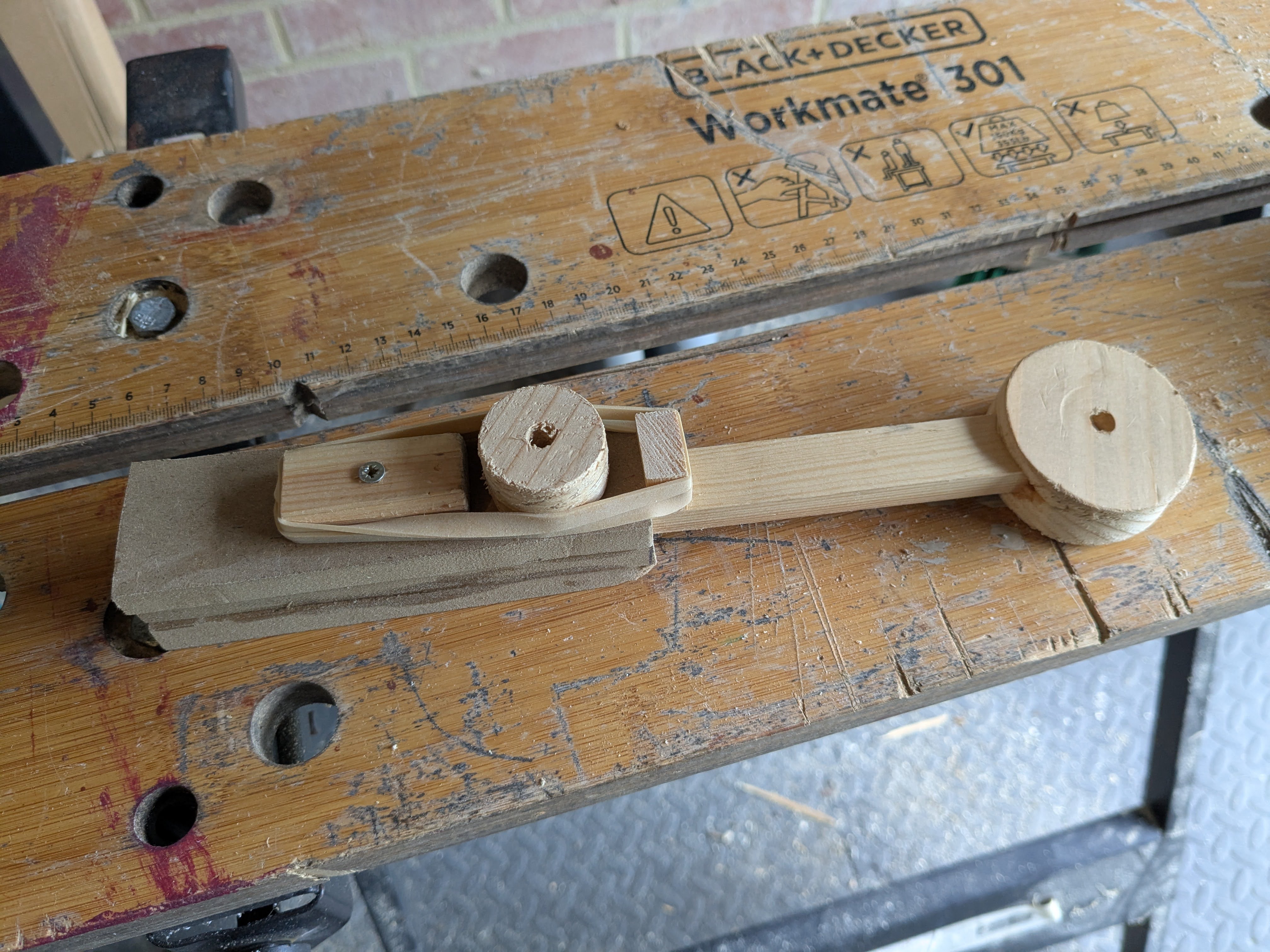

Attaching the elastic band

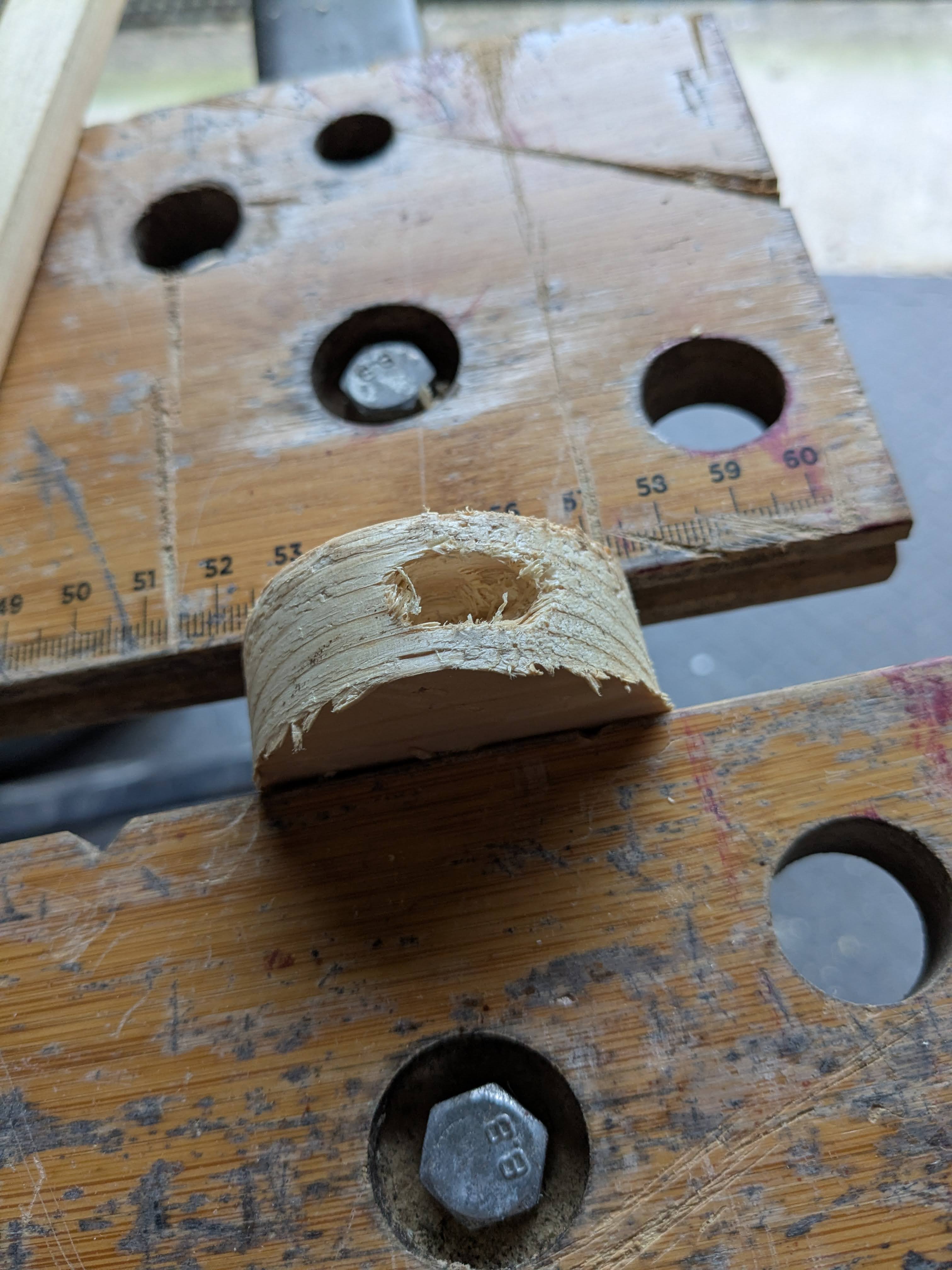

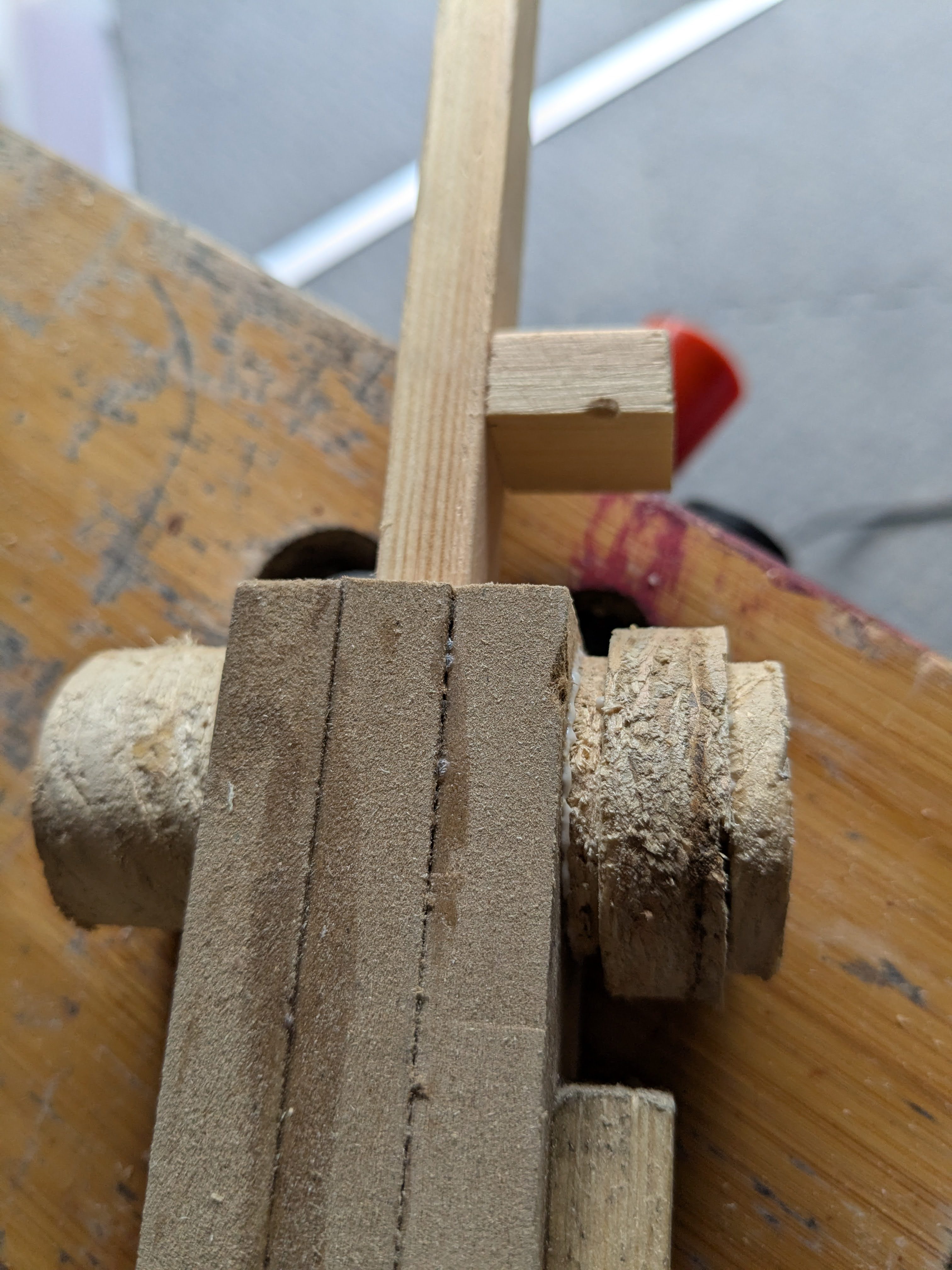

Also added 2 wooden discs which will allow the lever to pivot

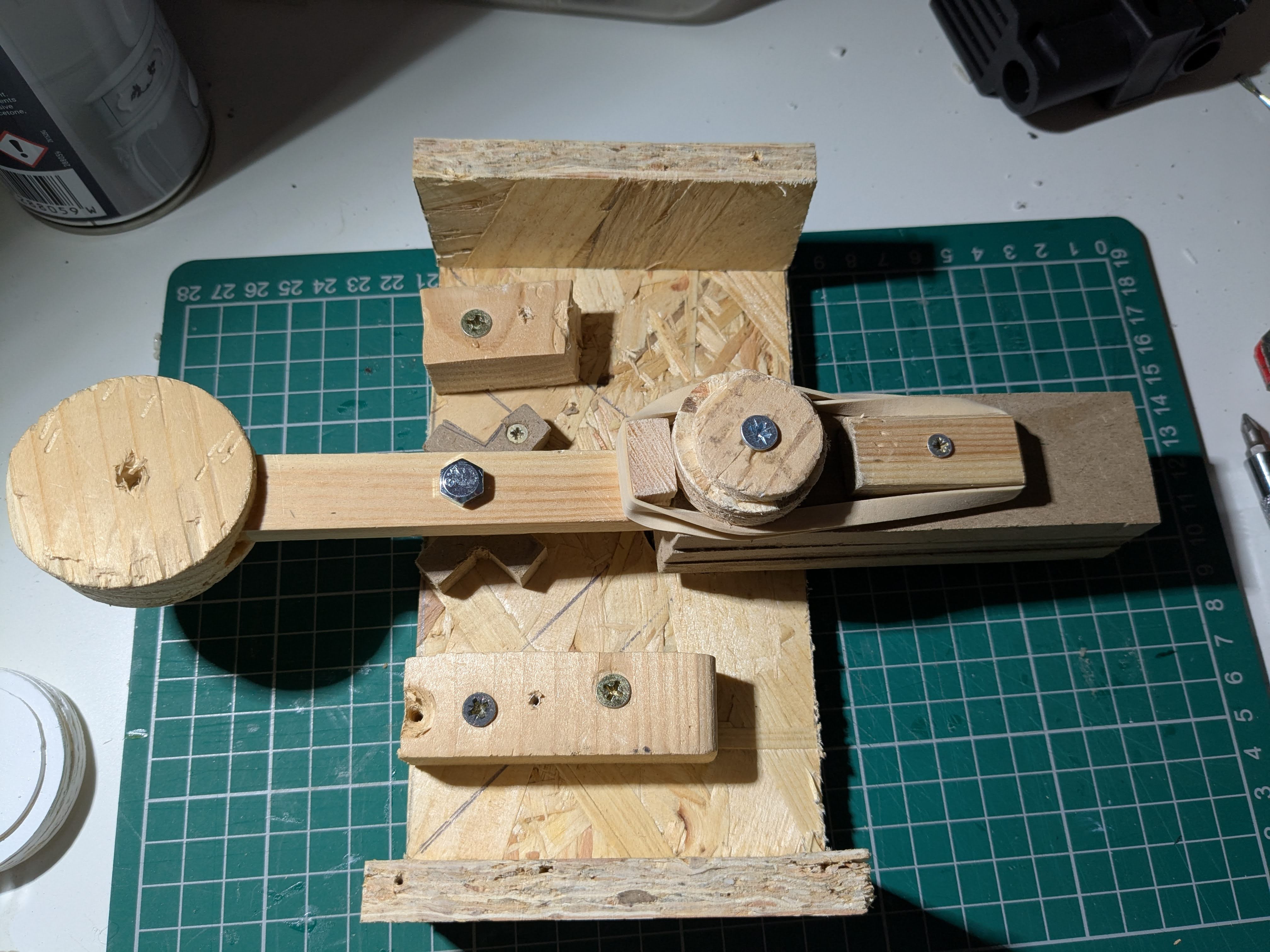

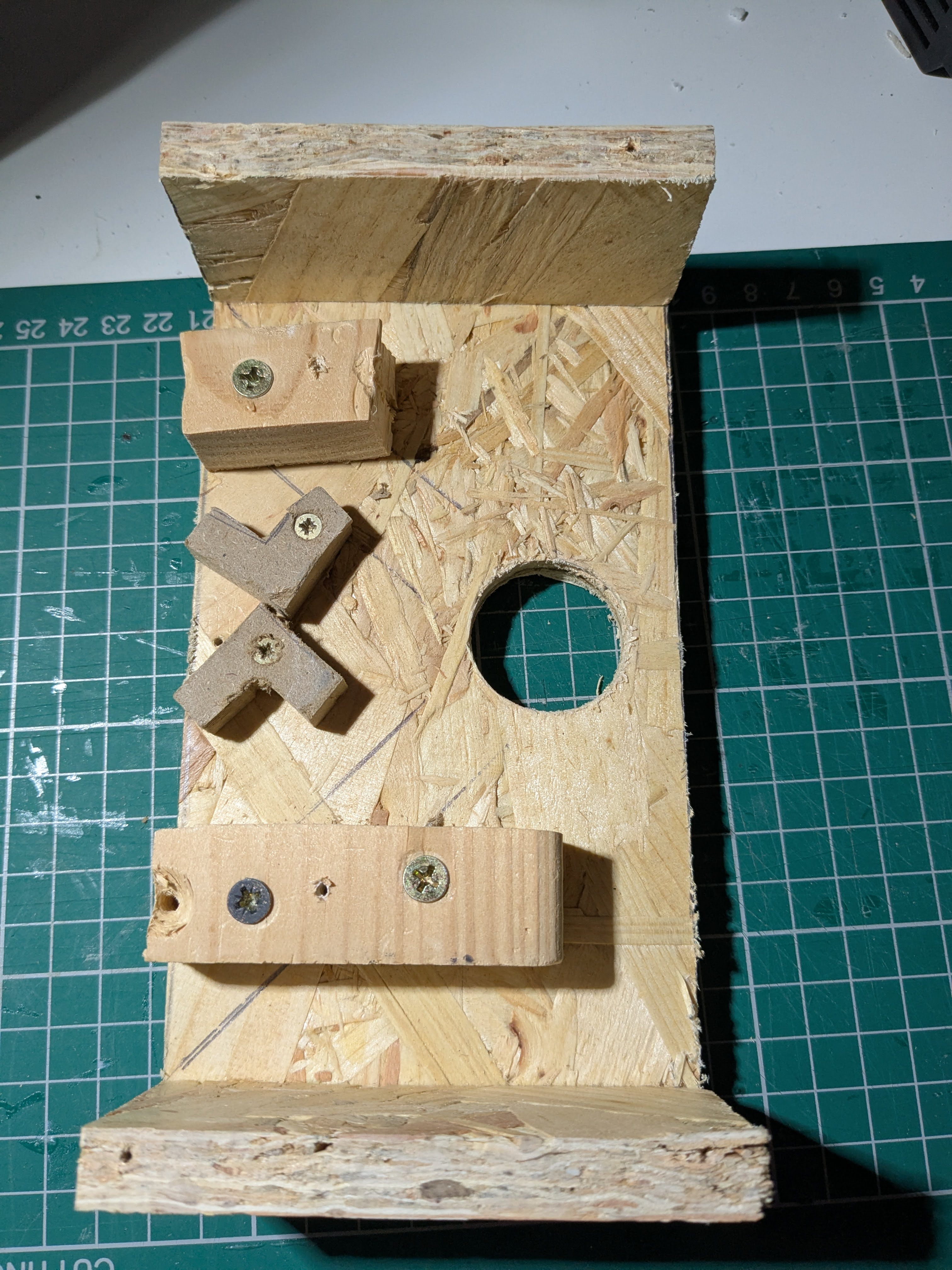

Building a holding box


Seating the gear lever into he box

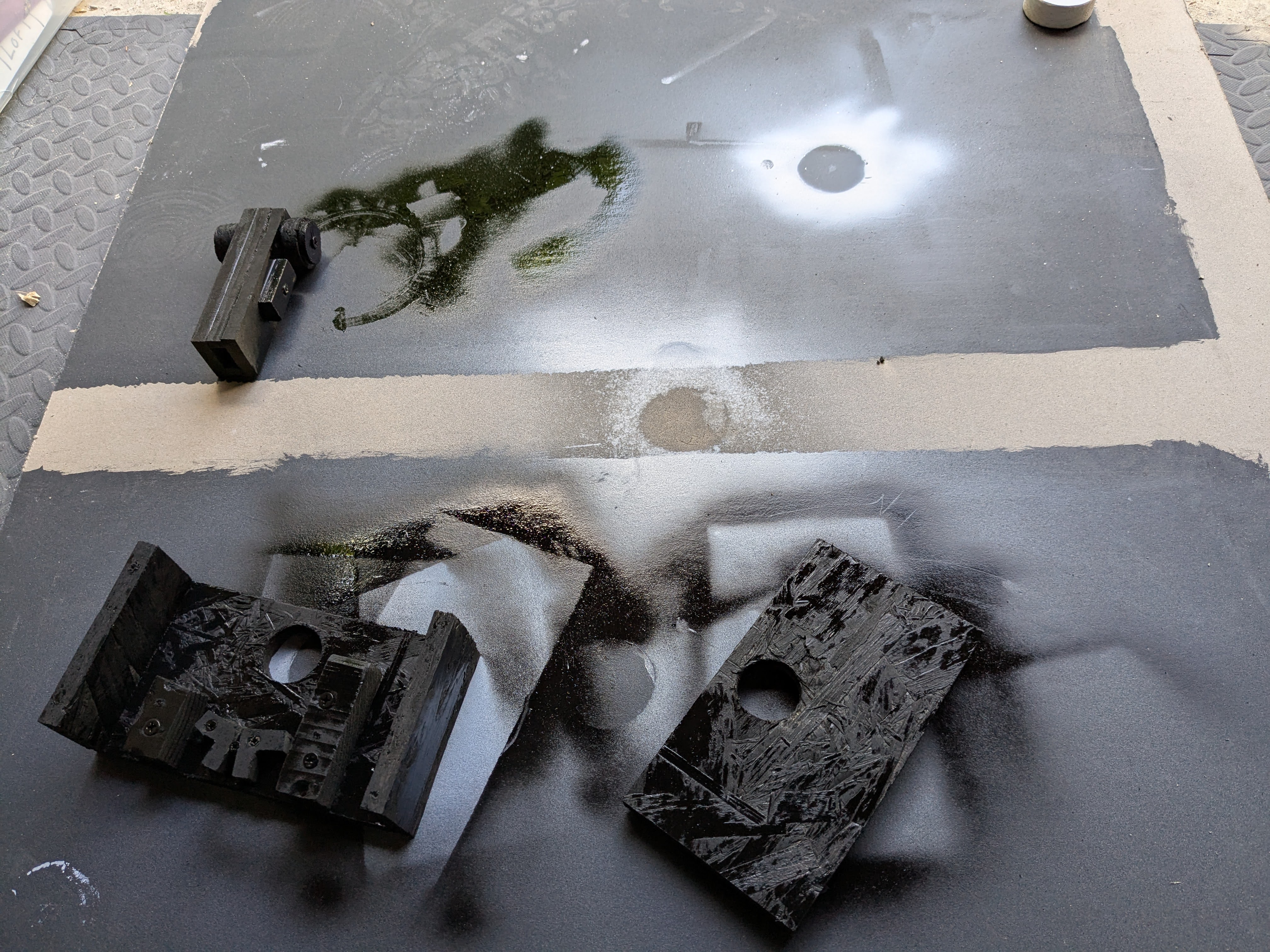

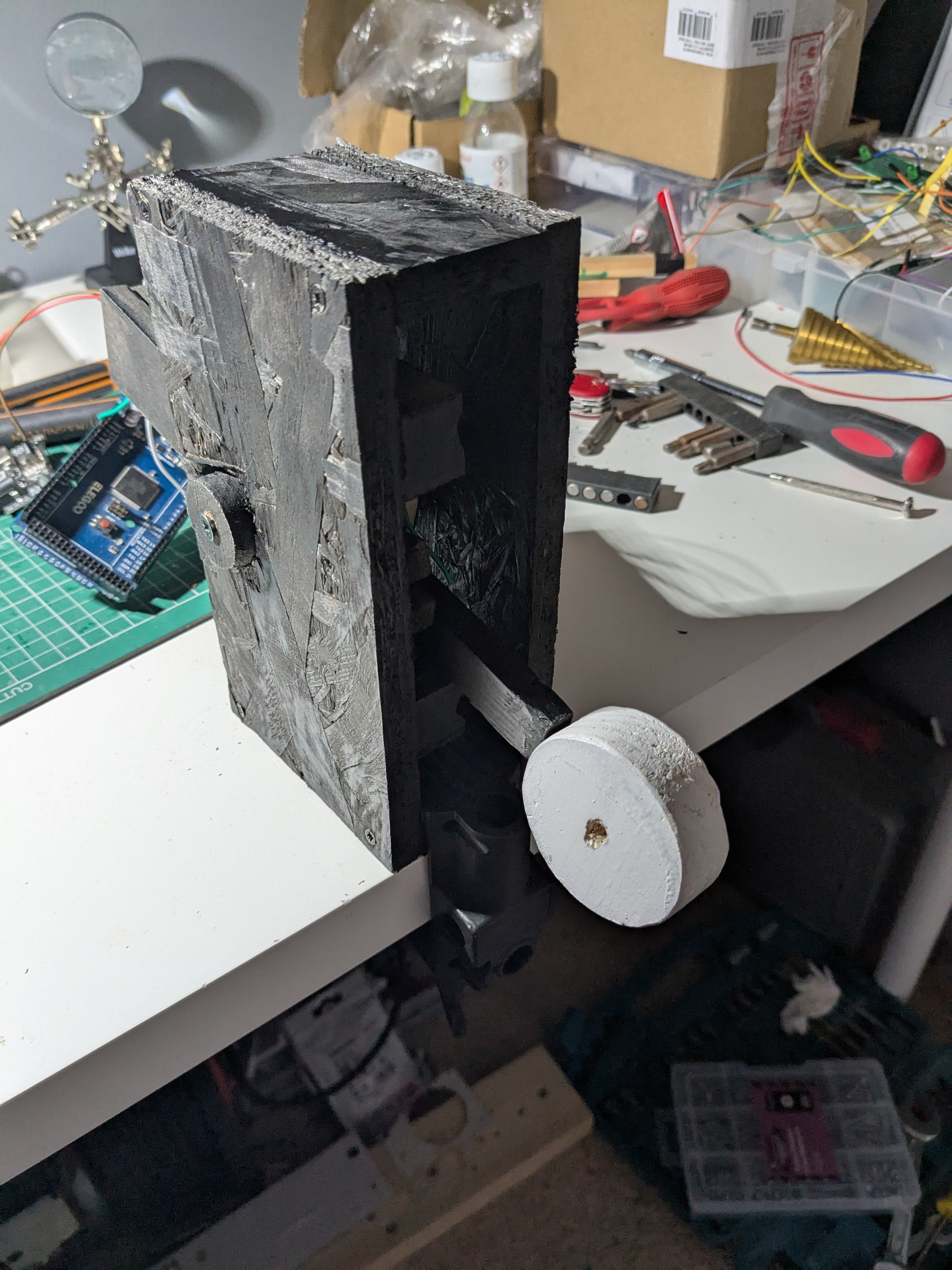

Spray painting everything

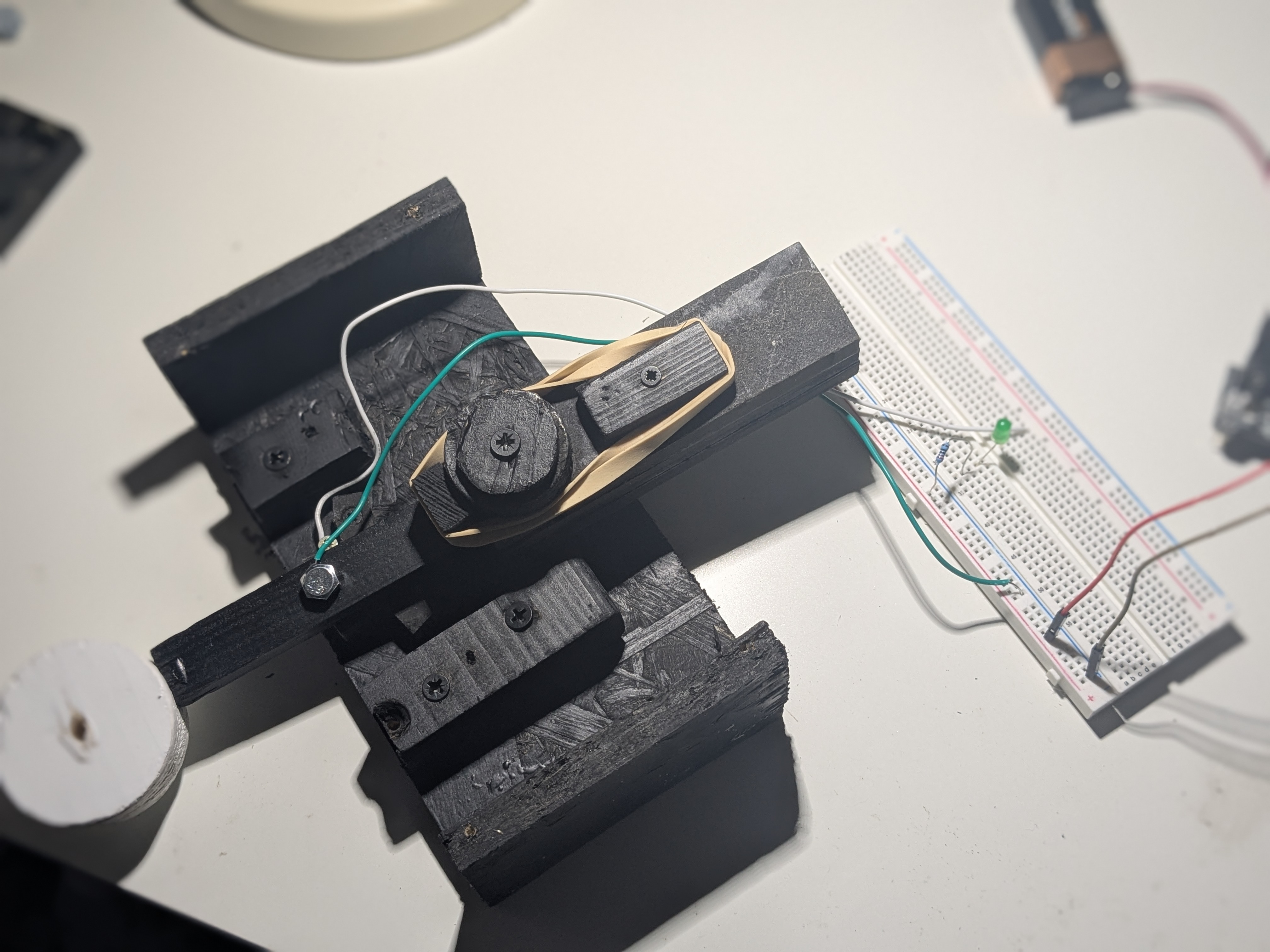

Adding the wiring


Assembling the unit


Testing it out


Replacing the wooden handle with something better
